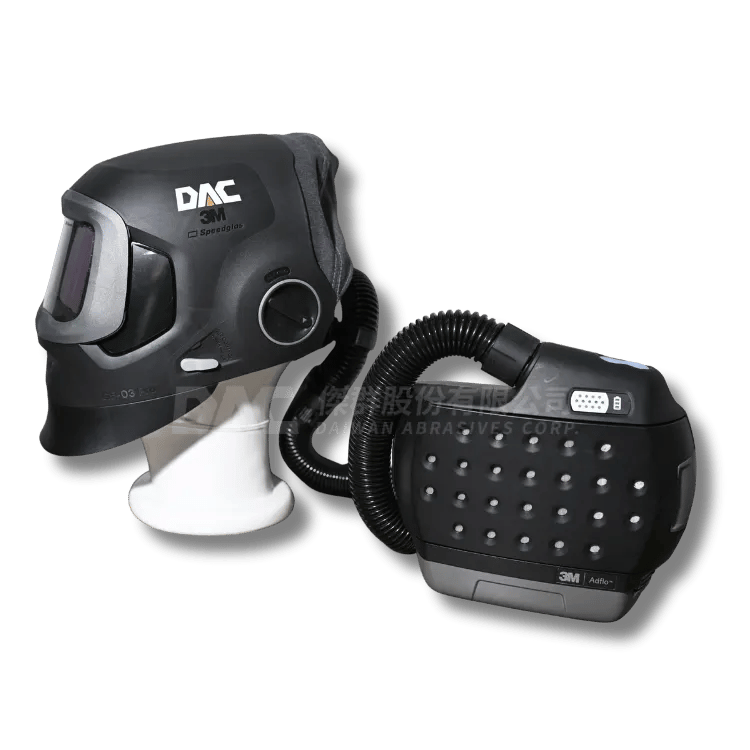

3M™ Speedglas™ Welding Helmet G5-03 Pro AIR
The brand new 3M™ Speedglas™ Welding Helmet G5-03 Pro AIR sets a new benchmark in heavy industrial protection. Serving as the advanced successor to the legendary 9100 AIR series, it introduces specialized tack welding functionality and integrates seamlessly with Powered Air Purifying Respirator (PAPR) systems, eliminating the stuffiness of traditional reusable face masks and half-mask respirators.
- Advanced Performance & Innovation
-
Innovative Tap Function： Features a gesture-based interface allowing operators to tap the side of the helmet shell 3 times to switch effortlessly between grind/cut and weld modes without removing gloves.
-
- Ordering Information & Technical Specifications
-
Model 63 77 20 (TW Variant)： Complete assembly including G5-03 Pro AIR helmet shell, Auto-Darkening Filter (ADF) optimized for tack welding, and PAPR system blower unit.
-
Model 63 77 30 (VC Variant)： Complete assembly including G5-03 Pro AIR helmet shell, ADF featuring Variable Color technology, and PAPR system blower unit.
-
Model 63 28 00 (Helmet Shell Only)： Replacement or upgrade respirator-ready helmet shell assembly (excludes ADF lens and PAPR hardware).
-
Respirator System Unit： Powered by the high-performance 3M™ Adflo™ Powered Air Purifying Respirator (PAPR) Blower Assembly 837730.
-
ADF Battery Specification： Powered by standard, easily replaceable Lithium 3V (CR2450) coin cells.
-
-
Auto-Darkening Filter (ADF)
-
ADF Model
-
Lens Model
-
Viewing Area
-
Weight (g)
-
Packaging
|
產品名稱及 ID
|
Auto-Darkening Filter (ADF)
|
ADF Model
|
Lens Model
|
Viewing Area
|
Weight (g)
|
Packaging
|
加入詢價車
|
|---|---|---|---|---|---|---|---|

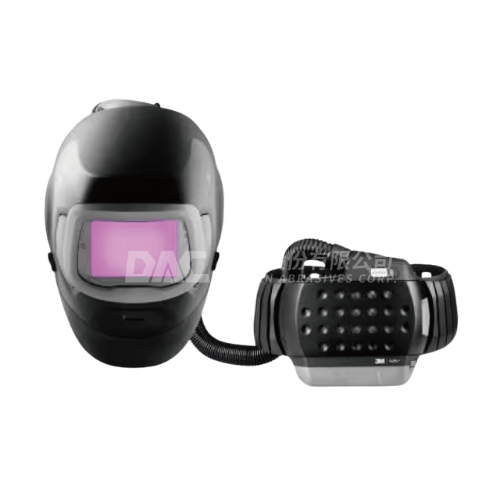

3M™ Speedglas™ G5-03 Pro-Air Welding Helmet with 3M™ Adflo™ PAPR Assembly 637720, G5TW ADF, 1 EA/Case
DAC ID：1PSM637720
MID：7100318464
|
YES | 610021 | G5TW (NC,TW) | 73 mm x 109 mm | 607 g | 1 EA/Case |
+
|
3M™ Speedglas™ G5-03 Pro-Air Welding Helmet with 3M™ Adflo™ PAPR Assembly 637730, G5VC ADF, 1 EA/Case
DAC ID：1PSM637730
MID：7100318468
|
YES | 610031 | G5VC (NC,VC) | 73 mm x 109 mm | 635 g | 1 EA/Case |
+
|

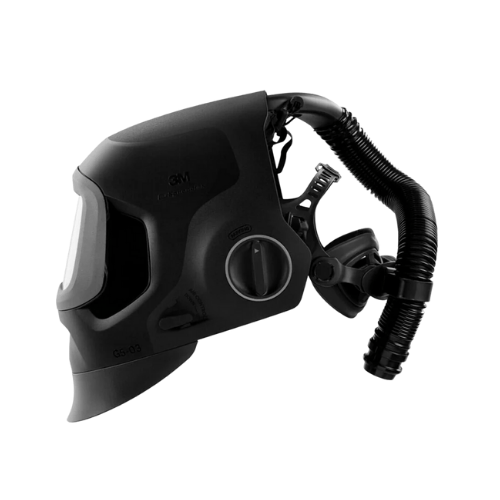

632800 帽殼 (無ADF) G5-03 Pro Air
DAC ID：1PSM632800
MID：7100319511
|
NO | 1 EA/Case | NO | 73 mm x 109 mm | 280 g |
+
|
-
3M™ Speedglas™ G5-03 Pro-Air Welding Helmet with 3M™ Adflo™ PAPR Assembly 637720, G5TW ADF, 1 EA/CaseDAC ID：1PSM637720Auto-Darkening Filter (ADF)
YES ADF Model610021 Lens ModelG5TW (NC,TW) Viewing Area73 mm x 109 mm Weight (g)607 g Packaging1 EA/Case 加入詢價車+ -
3M™ Speedglas™ G5-03 Pro-Air Welding Helmet with 3M™ Adflo™ PAPR Assembly 637730, G5VC ADF, 1 EA/CaseDAC ID：1PSM637730Auto-Darkening Filter (ADF)
YES ADF Model610031 Lens ModelG5VC (NC,VC) Viewing Area73 mm x 109 mm Weight (g)635 g Packaging1 EA/Case 加入詢價車+ -
632800 帽殼 (無ADF) G5-03 Pro AirDAC ID：1PSM632800Auto-Darkening Filter (ADF)
NO ADF Model1 EA/Case Lens ModelNO Viewing Area73 mm x 109 mm Weight (g)280 g Packaging加入詢價車+
產品特色
- Integrated PAPR Respiratory & Eye Protection
-
All-In-One Protection System： Seamlessly integrates the G5-03 Pro welding helmet with the 3M™ Adflo™ Powered Air Purifying Respirator (PAPR) system, providing high-efficiency particulate filtration and specialized all-day protection for professional welders.
-
- Revolutionary Tap Functionality
-
Intuitive Mode Switching： Tap the helmet shell 3 times to switch instantly between Welding, Grind, and Cut modes without removing gloves or adjusting internal controls, maximizing floor productivity.
-
- Advanced ADF Selection & Precision Optics
-
Dual Lens Configurations： Supports G5-01/03VC (Variable Color technology) and G5-01/03TW (Tack Welding mode) auto-darkening filters, enabling customized weld pool visibility and contrast.
-
Panoramic Vision Window： Expansive 73 mm x 109 mm viewing profile ensures an unobstructed, razor-sharp view of the working area.
-
Shade Ranges： Provides precision darkening with Shade 3, 5, 8–14 for the VC Variant, and Shade 2.5, 5, 8–13 for the TW Variant.
-
- Ergonomic Architecture & Modular Upgrades
-
Patented SideWindows： Built-in shade 5 side lenses expand peripheral vision for heightened situational awareness (includes cover plates for optional occlusion).
-
Ergonomic Harness System： Fully adjustable headband structure optimizes fit mechanics and balance to drastically reduce physical neck stress.
-
Modular Safety Upgrades： Scalable platform fully compatible with task lights, neck protections, head covers, and hard hat adapters for targeted heavy-duty environments.
-
- Applicable Welding Processes
-
Process Compatibility： Approved for MMAW (Stick), MIG/MAG, TIG (>20A), TIG (1A–20A), Plasma Welding & Cutting, Tack Welding, and Grinding. Please consult official technical data sheets for detailed compliance parameters.
-
3M™ Speedglas™ G5-03 Pro AIR ADF Specification Comparison (VC vs. TW)
| Specification | 3M™ Speedglas™ G5-03 Pro AIR VC | 3M™ Speedglas™ G5-03 Pro AIR TW |
|---|---|---|
| Product Name | G5-03 Pro with G5-01/03VC Welding ADF | G5-03 Pro with G5-01/03TW Welding ADF |
| ADF Model | 63 77 30 (Includes VC Filter) | 63 77 20 (Includes TW Filter) |
| Variable Color Options | Yes, 3 Selectable Tones | No |
| Tack Welding Mode | No | Yes, Light State 2.5 |
| Arc Sensors | 4 | 4 |
| Bluetooth™ Connectivity | Yes | Yes |
| Dark State Shade | Shade 8–14 | Shade 8–13 |
| Light State Shade | Shade 3 | Shade 2.5 |
| Cut Mode | Yes, Shade 5 | Yes, Shade 5 |
| Natural Color Tech | Yes | Yes |
| TAP Function | Yes | Yes |
產品規格
- 品牌
- 3M, SPEEDGLAS
- Auto-Darkening Filter (ADF)
- YES , NO
- ADF Model
- 610021 , 610031 , NO , 1 EA/Case
- Lens Model
- G5TW (NC,TW) , G5VC (NC,VC) , NO
- Viewing Area
- 73 mm x 109 mm
- Weight (g)
- 607 g , 635 g , 280 g
- Packaging
- 1 EA/Case
