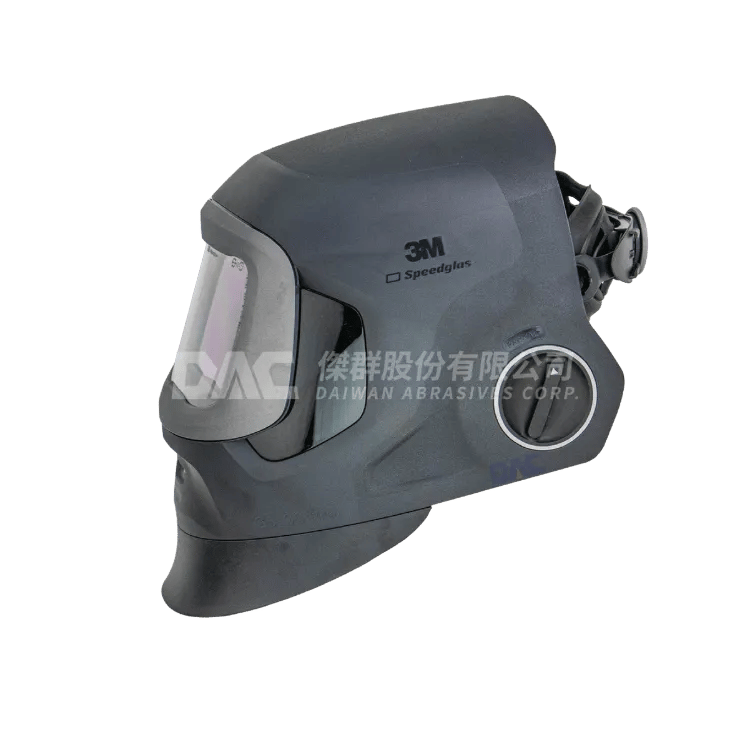

3M™ Speedglas™ Welding Helmet G5-03 Pro
The new 3M™ Speedglas™ G5-03 Pro is the premier successor to the 9100XXI series. It delivers advanced tack welding functionality and seamless compatibility with personal protective equipment (PPE) such as safety eyewear and respirators.
- Key Features & Innovation
-
Innovative Tap Function： Tap the helmet shell 3 times to switch instantly between grind and weld modes without removing gloves.
-
Slim Profile PPE Design： Engineered to minimize physical interference when worn with secondary safety eyewear and face masks.
-
- Ordering & Technical Specifications
-
Model 63 18 20 (TW Variant)： Complete assembly with helmet shell and Auto-Darkening Filter (ADF) optimized for tack welding.
-
Model 63 10 30 (VC Variant)： Complete assembly with helmet shell and ADF featuring Variable Color technology.
-
Model 63 18 00 (Shell Only)： Replacement or upgrade helmet shell assembly (excludes ADF lens).
-
ADF Battery Specification： Powered by standard, easily replaceable Lithium 3V (CR2450) coin cells.
-
-
Auto-Darkening Filter (ADF)
-
ADF Model
-
Lens Model
-
Viewing Area
-
Weight (g)
-
Packaging
|
產品名稱及 ID
|
Auto-Darkening Filter (ADF)
|
ADF Model
|
Lens Model
|
Viewing Area
|
Weight (g)
|
Packaging
|
加入詢價車
|
|---|---|---|---|---|---|---|---|
3M™ Speedglas™ G5-03 Pro Welding Helmet 631820, G5TW ADF, 1 EA/Case
DAC ID：1PSM631820
MID：7100318470
|
YES | 610021 | G5TW (NC,TW) | 73 mm x 109 mm | 607 g | 1 EA/Case |
+
|

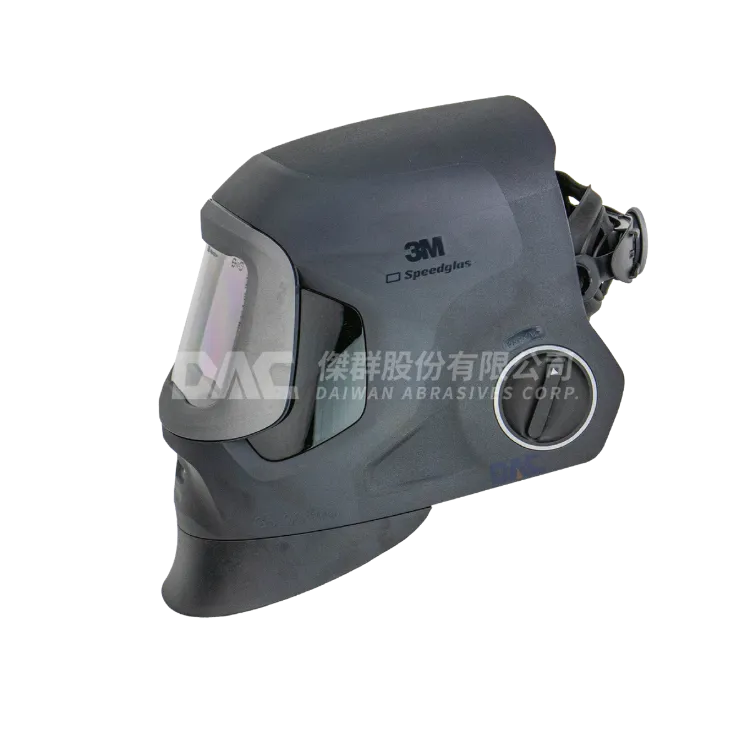

3M™ Speedglas™ G5-03 Pro Welding Helmet 631830 G5VC ADF, 1 EA/Case
DAC ID：1PSM631830
MID：7100318469
|
YES | 610031 | G5VC (NC,VC) | 73 mm x 109 mm | 635 g | 1 EA/Case |
+
|

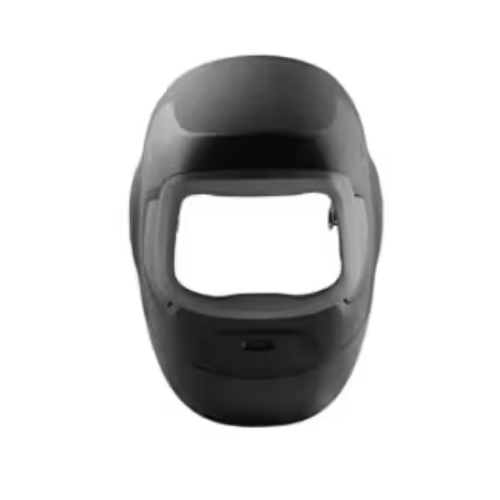

631800,G5-03 PRO G5-03 Pro Welding Helmet Without Welding Filter
DAC ID：1PSM631800
MID：7100320681
|
NO | NO | NO | 73 mm x 109 mm | 280 g | 1 EA/Case |
+
|
-
3M™ Speedglas™ G5-03 Pro Welding Helmet 631820, G5TW ADF, 1 EA/CaseDAC ID：1PSM631820Auto-Darkening Filter (ADF)
YES ADF Model610021 Lens ModelG5TW (NC,TW) Viewing Area73 mm x 109 mm Weight (g)607 g Packaging1 EA/Case 加入詢價車+ -
3M™ Speedglas™ G5-03 Pro Welding Helmet 631830 G5VC ADF, 1 EA/CaseDAC ID：1PSM631830Auto-Darkening Filter (ADF)
YES ADF Model610031 Lens ModelG5VC (NC,VC) Viewing Area73 mm x 109 mm Weight (g)635 g Packaging1 EA/Case 加入詢價車+ -
631800,G5-03 PRO G5-03 Pro Welding Helmet Without Welding FilterDAC ID：1PSM631800Auto-Darkening Filter (ADF)
NO ADF ModelNO Lens ModelNO Viewing Area73 mm x 109 mm Weight (g)280 g Packaging1 EA/Case 加入詢價車+
產品特色
- Revolutionary Tap Functionality
-
Intuitive Mode Switching： By gently tapping the helmet shell 3 times, operators can seamlessly toggle between Welding, Grind, and Cut modes without removing gloves or searching for internal buttons, significantly boosting workplace throughput.
-
- Advanced ADF Lens Selection
-
Dual Auto-Darkening Filters： Fully compatible with G5-01/03VC (Variable Color technology) and G5-01/03TW (Tack Welding mode) filters, allowing welders to optimize color tones and puddle clarity based on personal preference and applications.
-
Panoramic Viewing Area： Features a large 73 mm x 109 mm viewing window to ensure clear, unobstructed peripheral visibility.
-
Shade Ranges： Offers precise shade controls with Shade 3, 5, 8–14 for the VC Variant, and Shade 2.5, 5, 8–13 for the TW Variant.
-
- Ergonomic & Modular Architecture
-
Robust & Compact Design： Engineered with a streamlined, low-profile outer shell that maximizes agility and simplifies handling in tight operational spaces.
-
Ergonomic Adjustable Harness： Outfitted with a premium adjustable headband system that optimizes weight distribution to ensure all-day comfort and stability.
-
Modular Accessory Integration： Highly scalable platform supporting various upgrades including task lights, neck covers, head protectors, and dedicated safety helmet adapters for heavy industrial protection.
-
- Applicable Welding Processes
-
Process Compatibility： Universally rated for MMAW (Stick), MIG/MAG, TIG (>20A), TIG (1A–20A), Plasma Welding & Cutting, Tack Welding, and Grinding operations.
-
3M™ Speedglas™ G5-03 Pro ADF Specification Comparison (VC vs. TW)
| Specification | 3M™ Speedglas™ G5-03 Pro VC | 3M™ Speedglas™ G5-03 Pro TW |
|---|---|---|
| Product Name | G5-03 Pro with G5-01/03VC Welding ADF | G5-03 Pro with G5-01/03TW Welding ADF |
| ADF Model | 631830 (Includes VC Filter) | 631820 (Includes TW Filter) |
| Variable Color Options | Yes, 3 Selectable Tones | No |
| Tack Welding Mode | No | Yes, Light State 2.5 |
| Arc Sensors | 4 | 4 |
| Bluetooth™ Connectivity | Yes | Yes |
| Dark State Shade | Shade 8–14 | Shade 8–13 |
| Light State Shade | Shade 3 | Shade 2.5 |
| Cut Mode | Yes, Shade 5 | Yes, Shade 5 |
| Natural Color Tech | Yes | Yes |
| TAP Function | Yes | Yes |
產品規格
- 品牌
- 3M, SPEEDGLAS
- Auto-Darkening Filter (ADF)
- YES , NO
- ADF Model
- 610021 , 610031 , NO
- Lens Model
- G5TW (NC,TW) , G5VC (NC,VC) , NO
- Viewing Area
- 73 mm x 109 mm
- Weight (g)
- 607 g , 635 g , 280 g
- Packaging
- 1 EA/Case
