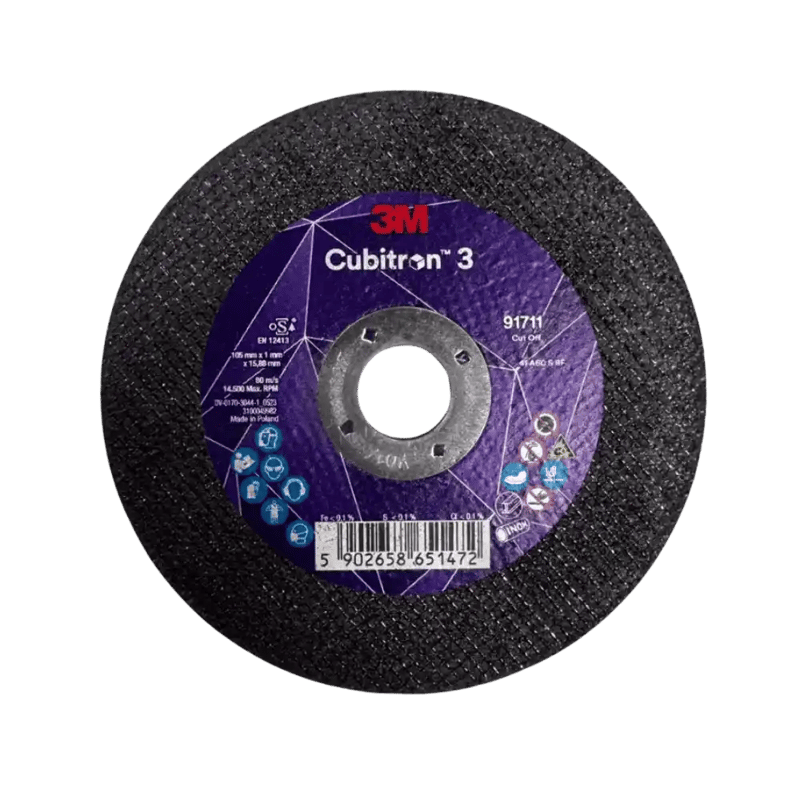

3M™ Cubitron™ 3 Cut-Off Wheel
- 10% Increase in Cutting Efficiency： Delivers a comprehensive 10% increase in cutting efficiency compared to the previous generation 3M™ Cubitron™ II premium abrasives, significantly shortening operation times and reducing structural wheel change-outs.
- Removes Up to 3x More Material： Demonstrates breakthrough durability and cutting power, removing up to 3 times more material than legacy 3M™ Cubitron™ II premium abrasives to drastically lower total consumable costs.
-
類型
-
粗度
-
外徑
-
厚度
-
中央孔徑
-
包裝
|
產品名稱及 ID
|
類型
|
粗度
|
外徑
|
厚度
|
中央孔徑
|
包裝
|
加入詢價車
|
|---|---|---|---|---|---|---|---|

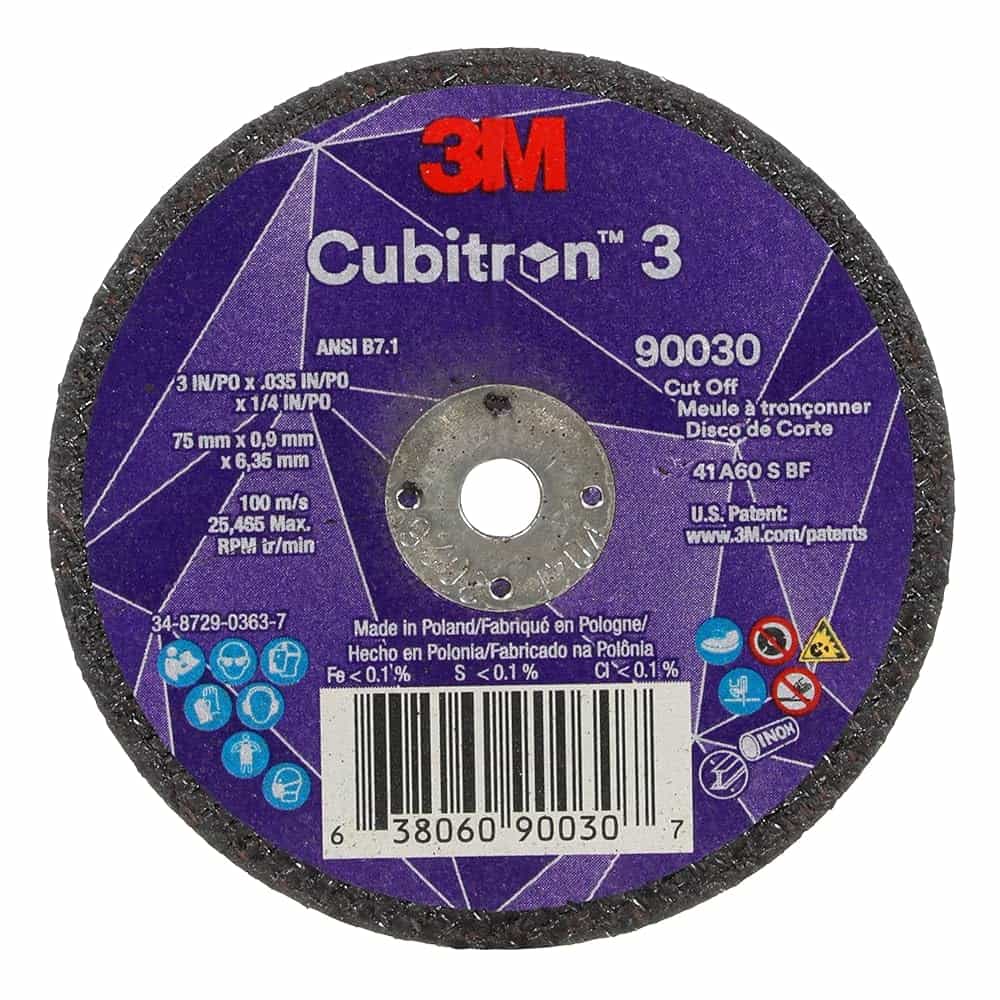

3M™ Cubitron™ 3 切割片, 90030
DAC ID：1ASM90030
MID：7100303860
|
T1 | 60+ | 3 in(75 mm) | 0.9 mm | 6.35 mm | 25片/包,50片/箱 |
+
|
3M™ Cubitron™ 3 切割片, 90031
DAC ID：1ASM90031
MID：7100303859
|
T1 | 60+ | 3 in(75 mm) | 0.9 mm | 9.53 mm | 25片/包,50片/箱 |
+
|

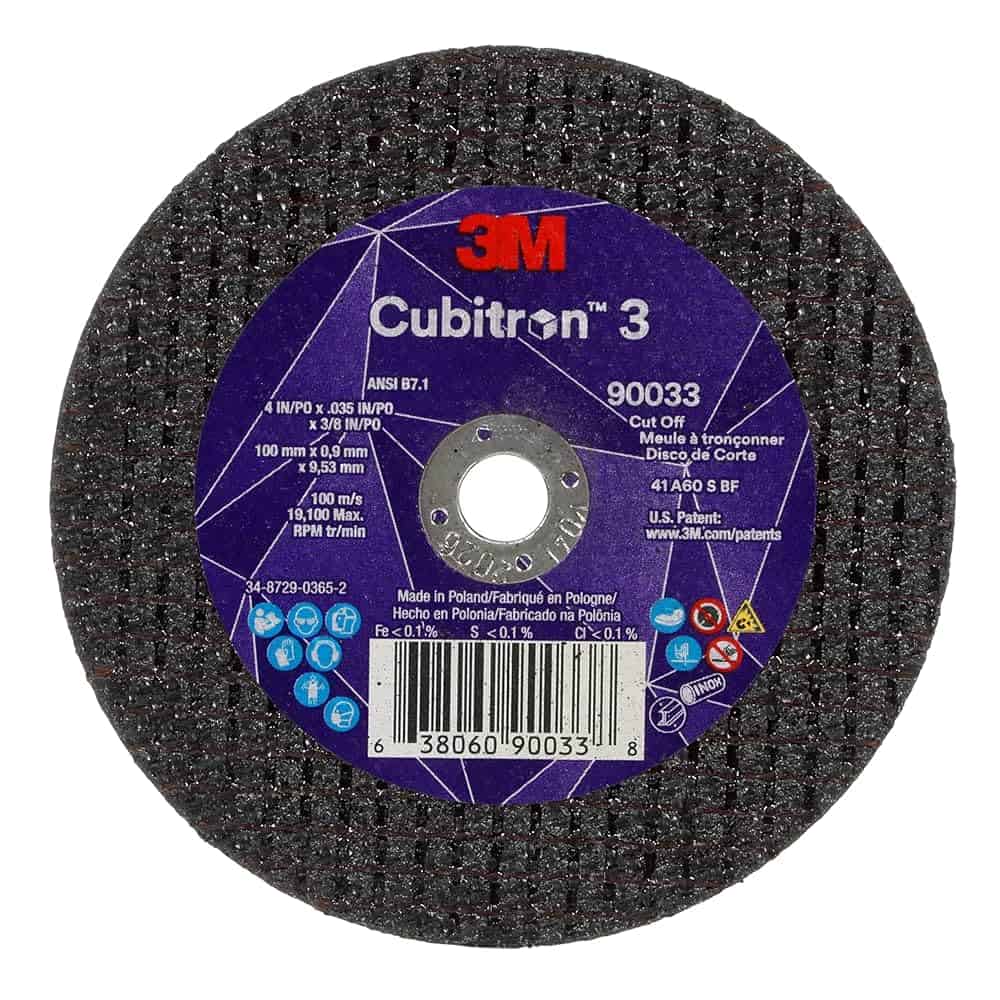

3M™ Cubitron™ 3 切割片, 90033
DAC ID：1ASM90033
MID：7100303860
|
T1 | 60+ | 4 in(100 mm) | 0.9 mm | 9.53 mm | 25片/包,50片/箱 |
+
|

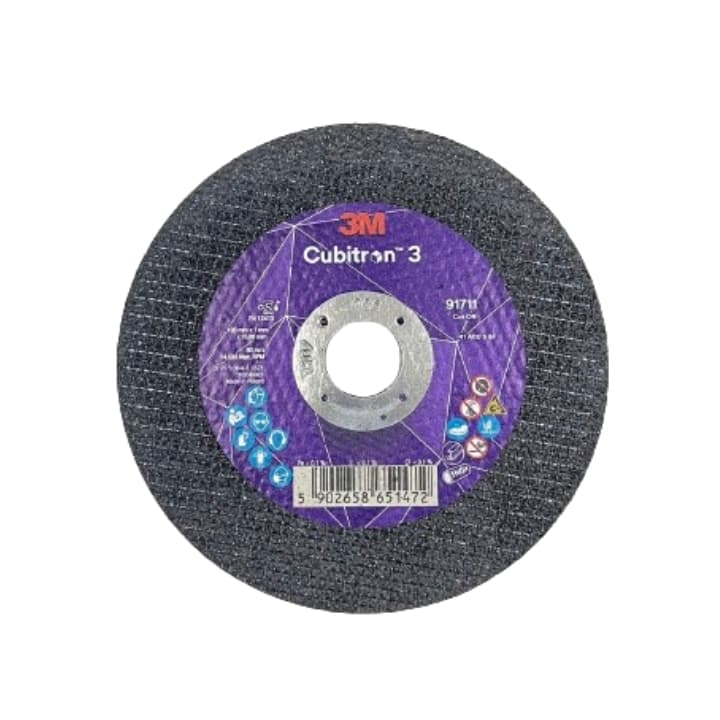

3M™ Cubitron™ 3 切割片, 91711
DAC ID：1ASM91711
MID：7100319552
|
T41 | 60+ | 4 in(105 mm) | 1 mm | 15.88 mm | 25片/包,50片/箱 |
+
|

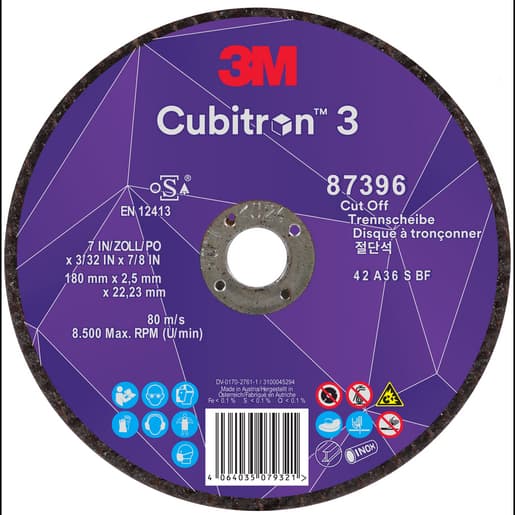

3M™ Cubitron™ 3 切割片, 87396
DAC ID：1ASM87396
MID：7100303994
|
T42 | 36+ | 7 in(180 mm) | 2.5 mm | 7/8 in(22.23 mm) | 25片/包,50片/箱 |
+
|
-
3M™ Cubitron™ 3 切割片, 90030DAC ID：1ASM90030類型
T1 粗度60+ 外徑3 in(75 mm) 厚度0.9 mm 中央孔徑6.35 mm 包裝25片/包,50片/箱 加入詢價車+ -
3M™ Cubitron™ 3 切割片, 90031DAC ID：1ASM90031類型
T1 粗度60+ 外徑3 in(75 mm) 厚度0.9 mm 中央孔徑9.53 mm 包裝25片/包,50片/箱 加入詢價車+ -
3M™ Cubitron™ 3 切割片, 90033DAC ID：1ASM90033類型
T1 粗度60+ 外徑4 in(100 mm) 厚度0.9 mm 中央孔徑9.53 mm 包裝25片/包,50片/箱 加入詢價車+ -
3M™ Cubitron™ 3 切割片, 91711DAC ID：1ASM91711類型
T41 粗度60+ 外徑4 in(105 mm) 厚度1 mm 中央孔徑15.88 mm 包裝25片/包,50片/箱 加入詢價車+ -
3M™ Cubitron™ 3 切割片, 87396DAC ID：1ASM87396類型
T42 粗度36+ 外徑7 in(180 mm) 厚度2.5 mm 中央孔徑7/8 in(22.23 mm) 包裝25片/包,50片/箱 加入詢價車+
產品特色
- Product Lifecycle Notice
-
Model Upgrade Path： Legacy cutting wheel model 65147 has been discontinued. The direct, next-generation replacement model is 91711.
-
- Next-Gen Abrasive Engineering
-
Peak Operational Performance： Serving as the flagship benchmark, 3M™ Cubitron™ 3 increases cutting efficiency by 10% and removes up to 3x more material compared to legacy Cubitron™ II wheels, setting a new industrial milestone.
-
Precision-Shaped Grain (PSG) Technology： Utilizes patented molecular engineering where sharp, triangular ceramic grains continuously fracture to generate new self-sharpening micro-edges, maintaining consistent bite throughout the wheel lifecycle.
-
- Thermal Management & Structural Lifecycle
-
Cool-Running Cut Dynamics： The specialized PSG micro-fracturing mechanism optimizes mineral breakdown to ensure low-temperature operation, drastically mitigating heat build-up, work-piece thermal deformation, or surface burning on high-hardness carbon steels.
-
Extended Wheel Lifecycle： Extreme heavy-duty durability drastically prolongs single-wheel runtime, minimizing tool change-outs and machine downtime to maximize workshop throughput.
-
- Universal Metal-Cutting Versatility
-
Heavy-Duty Applications： Specifically engineered to conquer demanding industrial cut-offs, including automotive sheet metal, structural stainless steel piping, exhaust manifolds, and rusted or seized fasteners.
-
Frequently Asked Questions (FAQ)
Q1: Do these cutting wheels comply with Taiwan safety certifications?
Yes, all products are fully compliant with the Taiwan TS Certification (Type Approval). Procuring teams can verify individual regulatory data and certificate numbers via the official Occupational Safety and Health Administration (OSHA) TS portal to guarantee site safety compliance.
Q2: What are the main performance advantages of Cubitron™ 3 cutting wheels over legacy models?
Through its re-engineered Precision-Shaped Grain (PSG) architecture, Cubitron™ 3 boosts cross-sectional cutting efficiency by 10% and delivers superior wear longevity. This significantly lowers industrial consumable overheads by curbing replacement frequencies.
Q3: Why is low-temperature (cool) cutting critical for stainless steel and carbon steel?
Excessive frictional heat during operations alters structural metal chemistry, causing physical warping or aesthetic heat discoloration (burn marks). The self-sharpening mechanism of Cubitron™ 3 ensures true slicing action rather than rubbing friction, effectively containing thermal transfer to protect workpiece integrity.
產品規格
- 品牌
- 3M, Cubitron 3
- 類型
- T1 , T41 , T42
- 粗度
- 60+ , 36+
- 外徑
- 3 in(75 mm) , 4 in(100 mm) , 4 in(105 mm) , 7 in(180 mm)
- 厚度
- 0.9 mm , 1 mm , 2.5 mm
- 中央孔徑
- 6.35 mm , 9.53 mm , 15.88 mm , 7/8 in(22.23 mm)
- 包裝
- 25片/包,50片/箱
